Remote Measurements in Radioactive Environments for n-TOF Autopsyfor n-TOF Autopsy

Summary

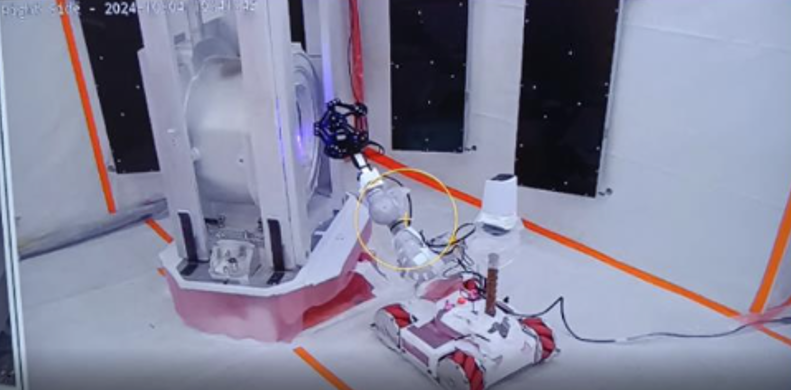

To analyse the post-mortem n-TOF target under radioactive constraints, we deployed remote metrology using a robot-mounted Metrascan. The approach enabled non-contact 3D scanning of the impacted area, extraction of each target for modelling, and reconstruction of the experiment’s beam axis for deformation assessment—without human exposure in the hot area.

Objectives

• Acquire a complete, traceable 3D scan of the irradiated target assembly.

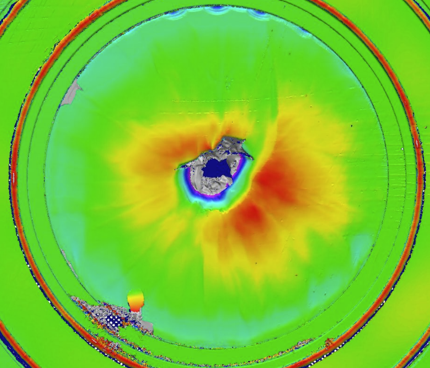

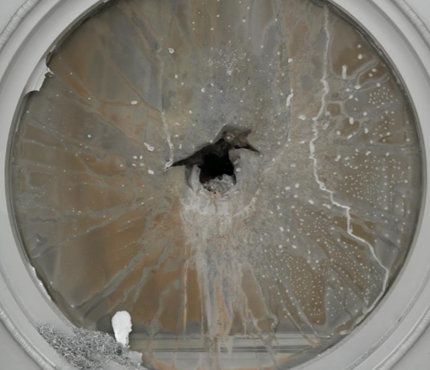

• Localise the point of impact and quantify deformation induced by the beam.

• Reconstruct the beam axis relative to the as-found geometry.

• Provide data products for physics and engineering post-analysis (meeting scheduled to define result processing and reporting).

Constraints & Risks

• Radioactivity of the part prohibiting direct access.

• Need for remote, contact-free measurement with robust referencing.

• Environmental stability (lighting, line-of-sight, robot reach) and measurement traceability.
